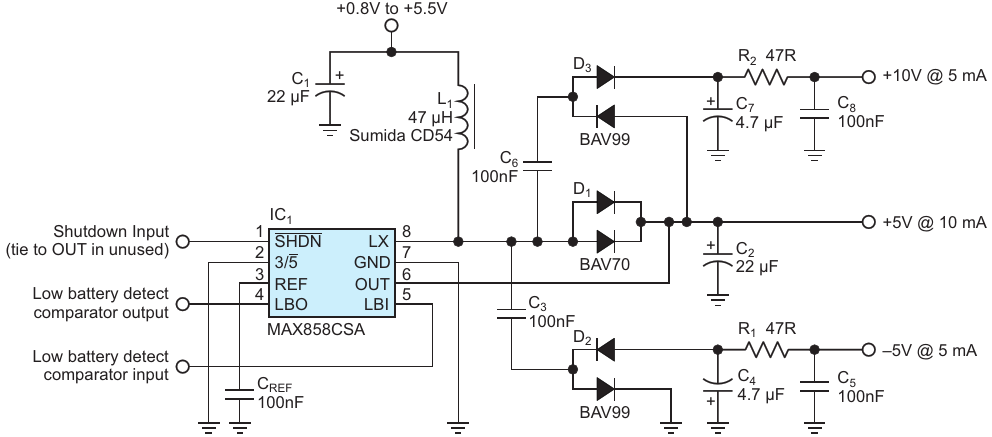

Adding external charge pumps to this 5 V boost converter produces auxiliary analog rails of 10 and -5 V
| Authors | Tim Herklots |
| Main Document | Article «Boost Converter Generates Three Analog Rails» |
| Description | Figure 1 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Boost Converter Generates Three Analog Rails»
- Figure 1. Adding external charge pumps to this 5 V boost converter produces auxiliary analog rails of 10 and -5 V
- Figure 2. With auxiliary rails unloaded, the 5 V output's maximum available load current rises with input supply voltage (a). The auxiliary-output voltage levels depend on the load current (b)
