The basic triangular-wave generator includes an integrator for generating the triangular- wave output and a comparator with external hysteresis, such as a Schmitt trigger, for setting the output amplitude
| Authors | Akshay Bhat |
| Main Document | Article «Single IC forms precision triangular-wave generator» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Single IC forms precision triangular-wave generator»

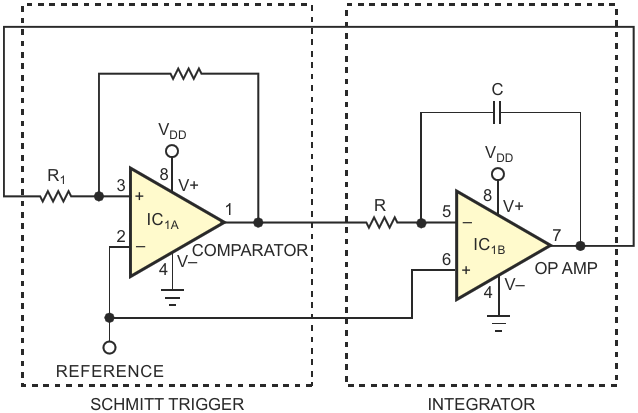

- Figure 1. The basic triangular-wave generator includes an integrator for generating the triangular- wave output and a comparator with external hysteresis, such as a Schmitt trigger, for setting the output amplitude
- Figure 2. A triangular-wave generator employs an IC that includes an op amp, a comparator, and a bandgap reference
