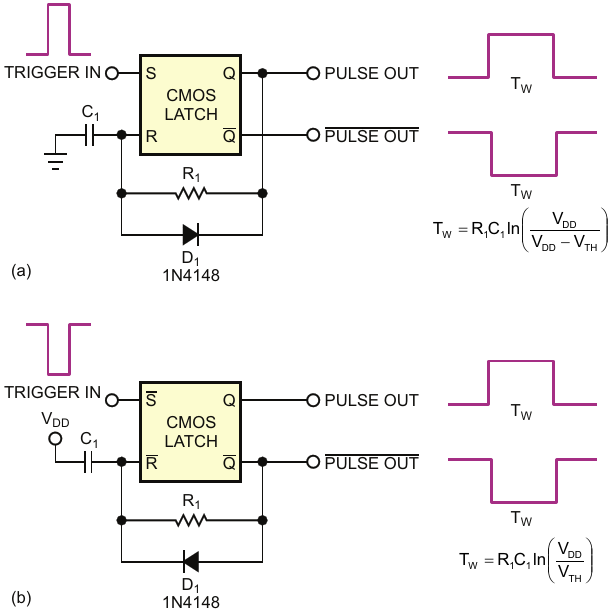

The leading edge of the trigger pulse depends on active-high (a) or active-low (b) inputs
| Authors | Luca Bruno |
| Main Document | Article «Turn a set/reset latch into an astable/monostable multivibrator» |
| Description | Figure 2 |
| File Format / Size | PDF / 16 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Turn a set/reset latch into an astable/monostable multivibrator»
- Figure 1. Capacitors that connect to ground or VDD depend on active-high (a) or active-low (b) inputs
- Figure 2. The leading edge of the trigger pulse depends on active-high (a) or active-low (b) inputs
