Unorthodox transistor connections to a low-dropout regulator allow you to squeeze a 100-mV dropout voltage down to 10 mV
| Authors | Matt Schindler |
| Main Document | Article «Pass transistor lowers dropout voltage» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Pass transistor lowers dropout voltage»

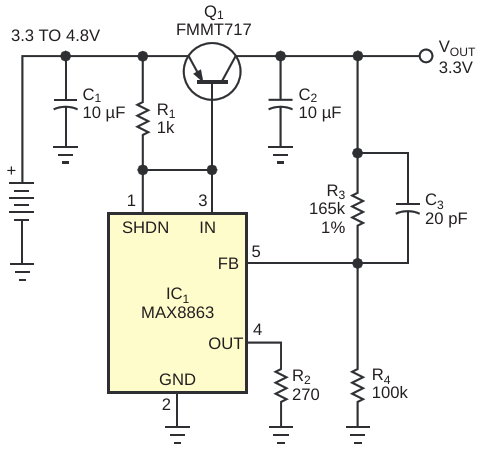

- Figure 1. Unorthodox transistor connections to a low-dropout regulator allow you to squeeze a 100-mV dropout voltage down to 10 mV
- Figure 2. Dropout voltage for the circuit in Figure 1 varies from 10 mV at 100 mA to 90 mV at 1 A
