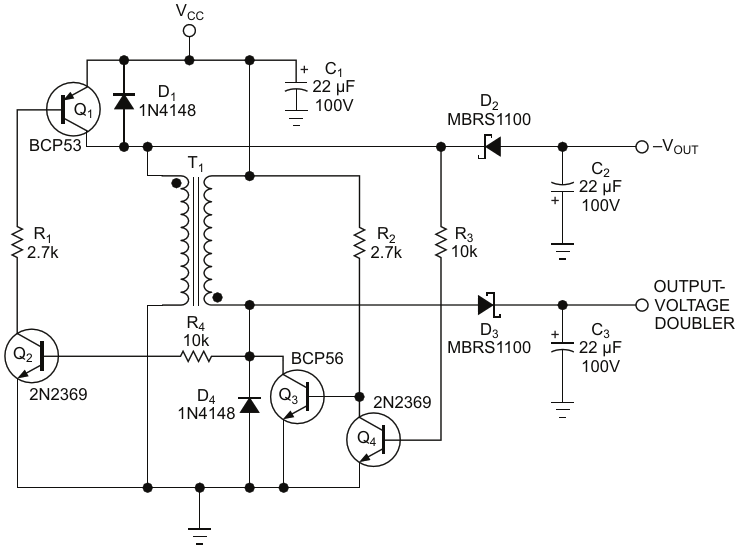

Cross-coupled regeneration drives switching transistors Q₁ and Q₃ and the windings of the transformer. The resulting voltage swings at their collectors are rectified to twice the positive and the negative power- supply rails

Authors	Ajoy Raman
Main Document	Article «Complementary-pair dc/dc converter simultaneously doubles, inverts supply voltage»
Description	Figure 1
File Format / Size	PDF / 17 Kb
Document Language	English

Slices

Cross-coupled regeneration drives switching transistors Q1 and Q3 and the windings of the transformer. The resulting voltage swings at their collectors are rectified to twice the positive and the negative power- supply rails
