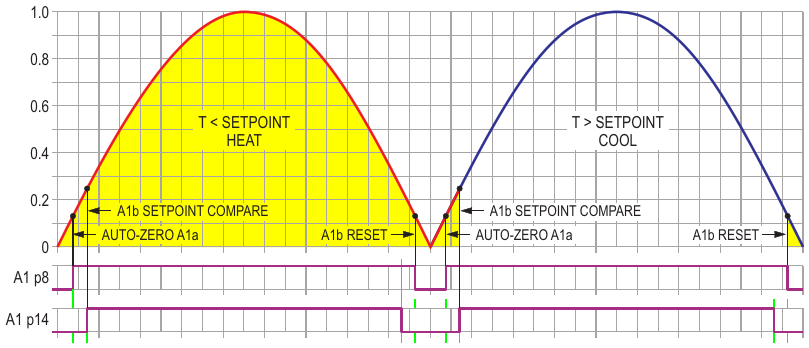

Temperature measurement/control cycle with two 8.33 ms cycles of thermostat operation where each of these cycles consists of four steps: autozero, setpoint compare, heat/cool and A1b reset
| Authors | Stephen Woodward |
| Main Document | Article «Self-heated ∆Vbe transistor thermostat needs no calibration» |
| Description | Figure 2 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
