An op-amp circuit uses only resistors and capacitors to generate a line-synchronized sine wave
| Authors | P Seshanna |
| Main Document | Article «Sine reference is synchronous with ac line» |
| Description | Figure 1 |
| File Format / Size | PDF / 20 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Sine reference is synchronous with ac line»

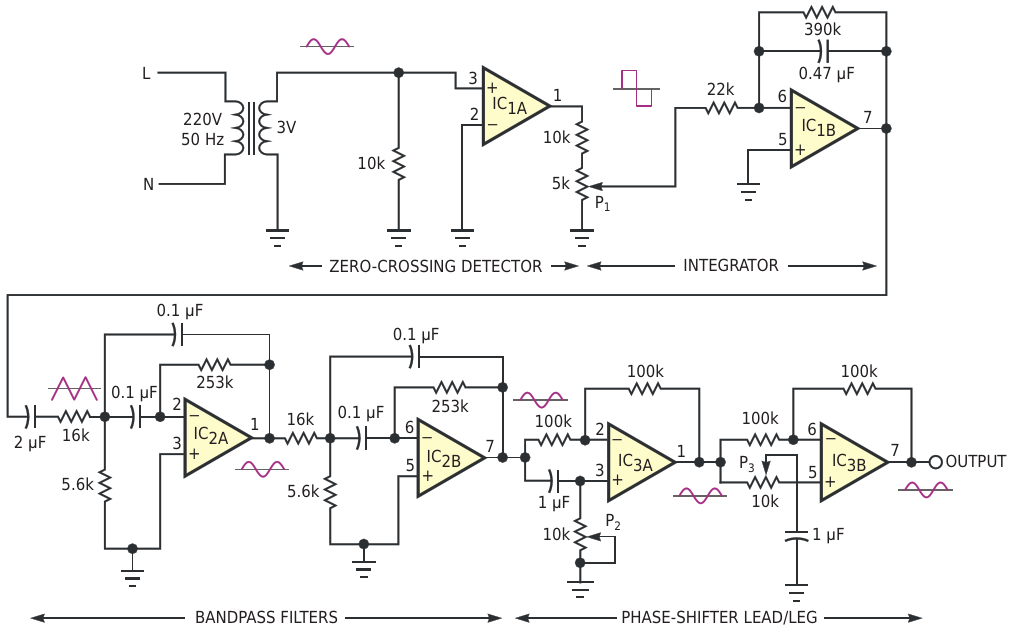

- Figure 1. An op-amp circuit uses only resistors and capacitors to generate a line-synchronized sine wave
- Figure 2. Distorted line voltage (a) produces a square wave (b). An integrator creates a triangular wave (c), and bandpass filters produce a pure sine wave (d)
