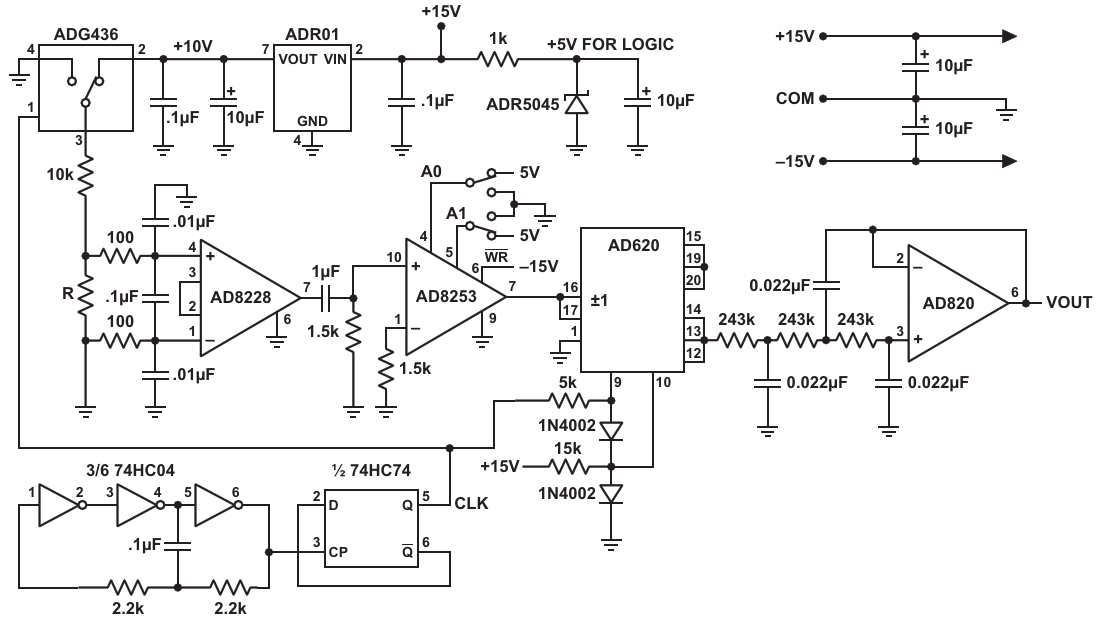

The AD8253 is configured in transparent gain mode, allowing the gain to be manually set by the user according to Table 1
| Authors | Moshe Gerstenhaber, Mark Champion |
| Main Document | Article «Complete, low-cost, software programmable ohmmeter measures micro-ohms» |
| Description | Figure 1 |
| File Format / Size | PDF / 21 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Complete, low-cost, software programmable ohmmeter measures micro-ohms»
- Figure 1. The AD8253 is configured in transparent gain mode, allowing the gain to be manually set by the user according to Table 1
- Figure 2. The output voltage of the system for various lengths of 18 AWG copper wire has a resistance of 213.58 μΩ/cm, as measured in the laboratory
- Figure 3. The measurement error of the system, where the noise in the curve is due to the human error in placing the measurement leads, and the slope of the curve is due to a slight system gain error
