Symmetrical rail-splitter supply design extended to ±15 V max output voltage by a different choice of DC source and the change of a few resistors
| Authors | Stephen Woodward |
| Main Document | Article «3-leg regulator in shunt mode makes variable power supply symmetrical» |
| Description | Figure 2 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «3-leg regulator in shunt mode makes variable power supply symmetrical»
- Figure 1. Symmetrical-output variable power supply uses single DC source with classic 3-leg regulators, one regulator (U3) operates in shunt mode as "rail-splitter"

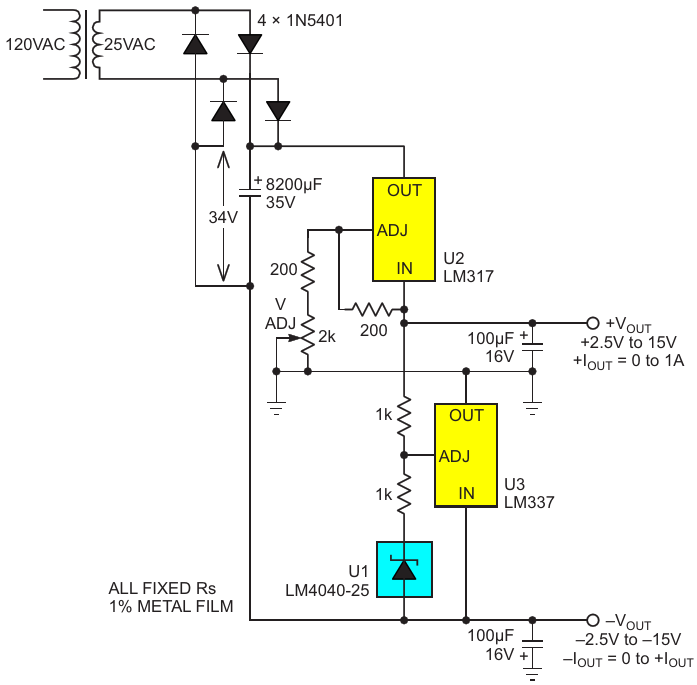

- Figure 2. Symmetrical rail-splitter supply design extended to ±15 V max output voltage by a different choice of DC source and the change of a few resistors
