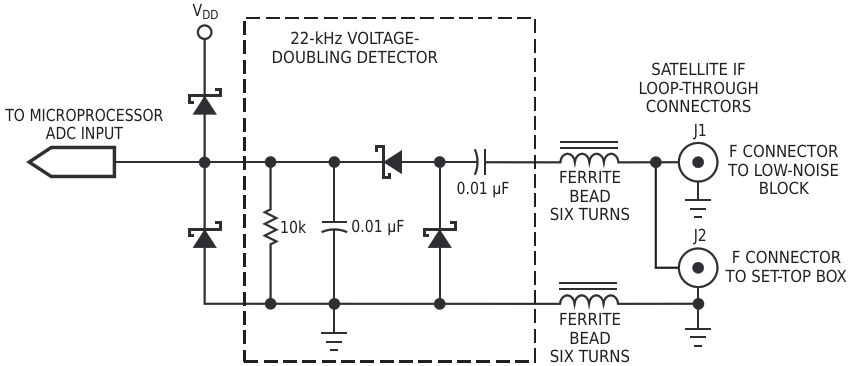

This circuit enables the microcontroller to decode the DISEqC-protocol bit stream
| Authors | Mark Giebler |
| Main Document | Article «Circuit forms satellite-dish command decoder» |
| Description | Figure 2 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Circuit forms satellite-dish command decoder»
- Figure 1. The DISEqC protocol specifies a bit time of 1.5 msec and these bit values
- Figure 2. This circuit enables the microcontroller to decode the DISEqC-protocol bit stream
