Simple local low-noise voltage converter that can be used when a simple negative supply of low voltage is required
| Authors | Peter Demchenko |
| Main Document | Article «Using an inductor to improve an existing design» |
| Description | Figure 1 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Using an inductor to improve an existing design»

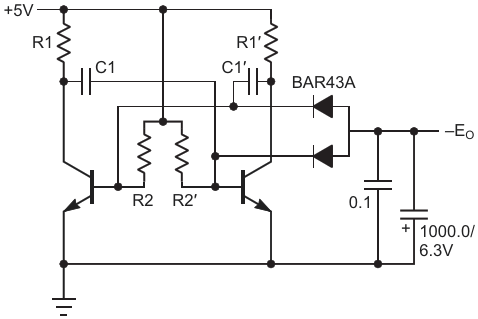

- Figure 1. Simple local low-noise voltage converter that can be used when a simple negative supply of low voltage is required
- Figure 2. Added inductance to the output of Figure 1 to improve converter efficiency
- Figure 3. Circuit that ensures any drop is voltage is detected that may result in distorted results for converters in Figure 1 and Figure 2
