xx4053 based, 100 kHz, voltage-halving, current-doubling charge pump
| Authors | Stephen Woodward |
| Main Document | Article «Charge pump halves voltage to double current "efficiency"» |
| Description | Figure 1 |
| File Format / Size | PDF / 16 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Charge pump halves voltage to double current "efficiency"»

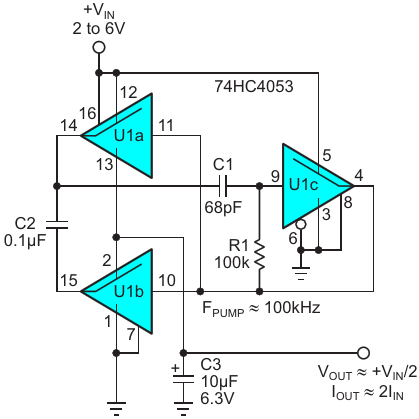

- Figure 1. xx4053 based, 100 kHz, voltage-halving, current-doubling charge pump
- Figure 2. Current multiplying charge-pump VOUT and IOUT/IIN current "efficiency" for VIN = 5 V
- Figure 3. Current doubling charge pump plus voltage inverter makes an efficient bipolar rail splitter
