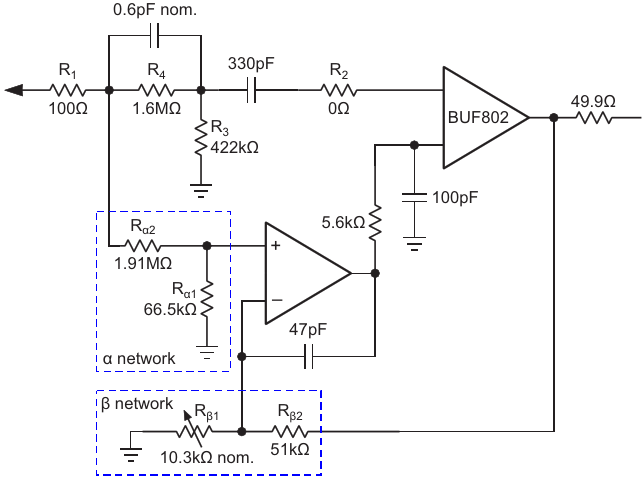

Simplified schematic of the probe input network
| Authors | James Wilson |
| Main Document | Article «2 GHz active probe. Part 2» |
| Description | Figure 13 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «2 GHz active probe. Part 2»
- Figure 12. High-level block diagram of the probe design
- Figure 13. Simplified schematic of the probe input network
- Figure 14. Complete schematic diagram of the probe
- Figure 15. openEMS simulation of the input impedance compared to prototype measurement
