This circuit withholds power from the attached microcontroller until it detects an IR transmission. While in standby mode, its quiescent current is under 2 μA
| Authors | Donald Schelle, David Lees |
| Main Document | Article «Infrared (IR) receiver circuit minimizes power consumption» |
| Description | Figure 1 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Infrared (IR) receiver circuit minimizes power consumption»

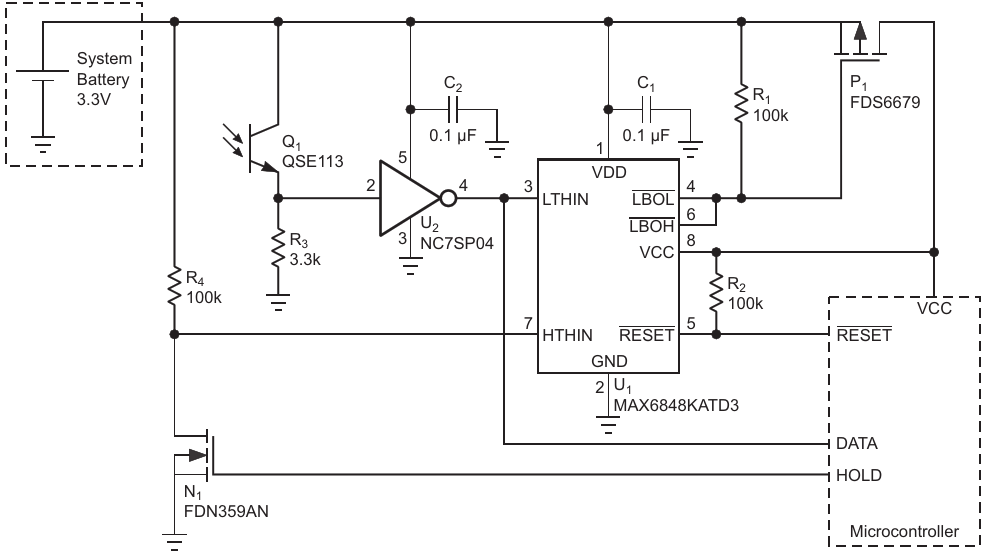

- Figure 1. This circuit withholds power from the attached microcontroller until it detects an IR transmission. While in standby mode, its quiescent current is under 2 μA
- Figure 2. When the Figure 1 circuit detects an IR signal, it powers and resets the microcontroller. After the IR transmission ends, the microcontroller suspends itself by releasing the Hold line
