Datasheet ADIS16201 (Analog Devices) - 7

ManufacturerAnalog Devices
DescriptionProgrammable Dual-Axis Inclinometer/Accelerometer
Pages / Page33 / 7 — ADIS16201. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. …
RevisionE
File Format / SizePDF / 605 Kb
Document LanguageEnglish

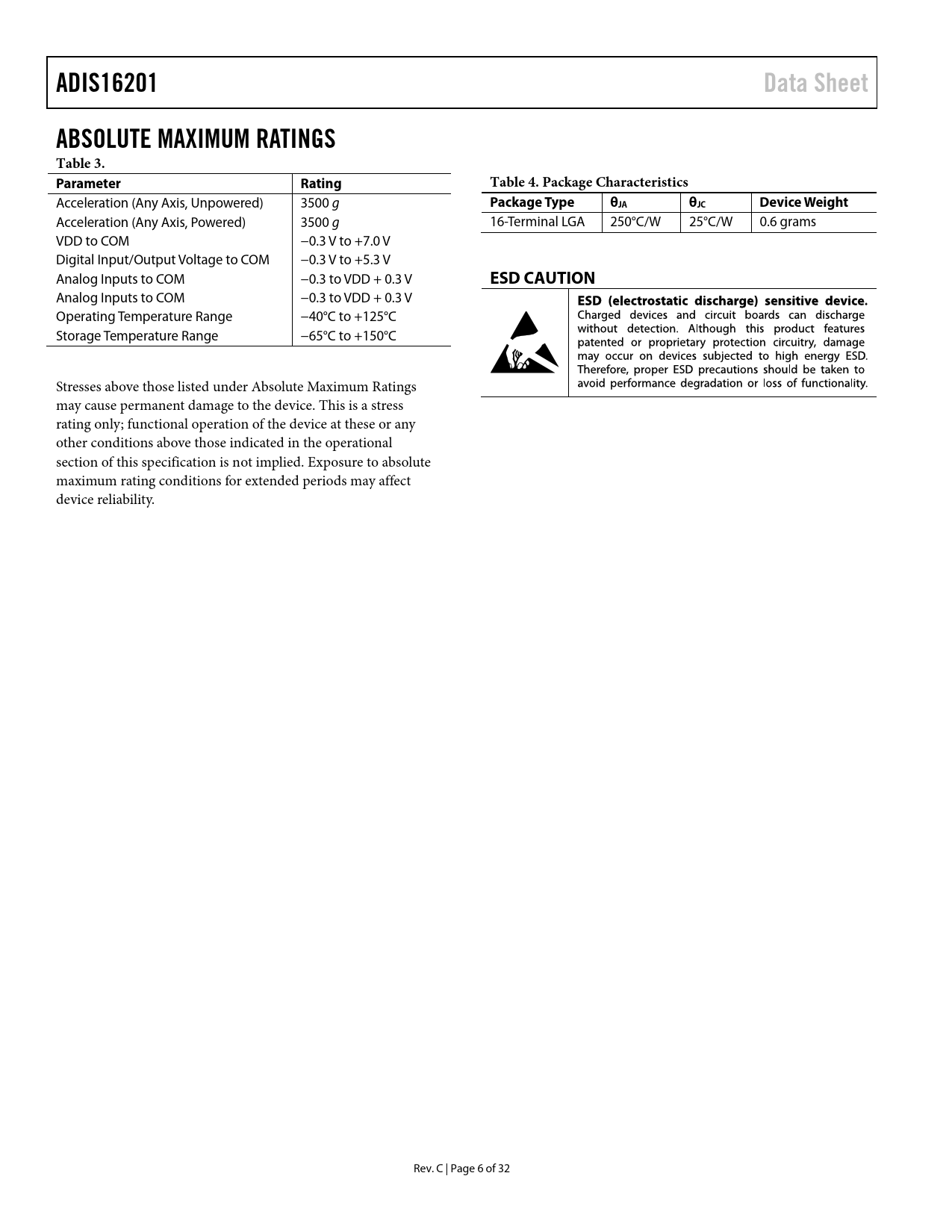

ADIS16201. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. Table 4. Package Characteristics. Package Type. θJA. θJC

ADIS16201 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3 Parameter Rating Table 4 Package Characteristics Package Type θJA θJC

Model Line for this Datasheet

Text Version of Document

ADIS16201 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating Table 4. Package Characteristics
Acceleration (Any Axis, Unpowered) 3500 g
Package Type θJA θJC Device Weight
Acceleration (Any Axis, Powered) 3500 g 16-Terminal LGA 250°C/W 25°C/W 0.6 grams VDD to COM −0.3 V to +7.0 V Digital Input/Output Voltage to COM −0.3 V to +5.3 V Analog Inputs to COM −0.3 to VDD + 0.3 V
ESD CAUTION
Analog Inputs to COM −0.3 to VDD + 0.3 V Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. C | Page 6 of 32 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Accelerometer Operation Inclinometer Operation Temperature Sensor Basic Operation Data Output Register Access Programming and Control Control Register Overview Control Register Access Control Register Details Calibration Calibration Register Definitions XACCL_OFF Register Definition XACCL_SCALE Register Definition YACCL_OFF Register Definition YACCL_SCALE Register Definition XINCL_OFF Register Definition XINCL_SCALE Register Definition YINCL_OFF Register Definition YINCL_SCALE Register Definition Alarms ALM_MAG1 Register Definition ALM_SMPL1 Register Definition ALM_MAG2 Register Definition ALM_SMPL2 Register Definition ALM_CTRL Register Definition Sample Period Control SMPL_PRD Register Definition Filtering Control AVG_CNT Register Definition Power-Down Control PWR_MDE Register Definition Status Feedback STATUS Register Definition Command Control COMMAND Register Definition Miscellaneous Control Register MSC_CTRL Register Definition Peripherals Auxiliary ADC Function Auxiliary DAC Function AUX_DAC Register Definition General Purpose I/O Control GPIO_CTRL Register Definition Applications Serial Peripheral Interface (SPI) Hardware Considerations Grounding and Board Layout Recomendations Bandgap Reference Power-On Reset Operation Second-Level Assembly Example Pad Layout Outline Dimensions Ordering Guide
