This schematic shows how to use the LM386 as a medium wave regenerative receiver

Download PDF

Other Materials from the Main Document

• Article «Create radio receiver circuits with the LM386 audio amplifier»
• Figure 1. This LM386 schematic is taken from a Texas Instruments datasheet
• Figure 2. The LM386 can be used as a tuned radio frequency receiver
• Figure 3. This voltage vs frequency graph is taken from a Texas Instruments datasheet

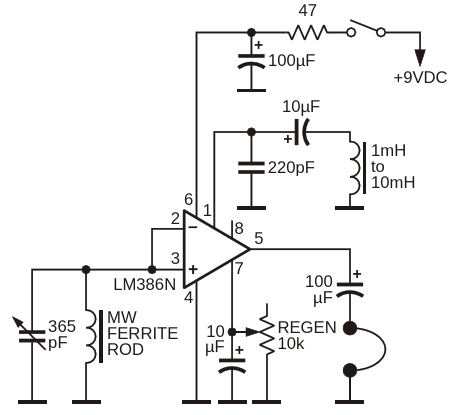

• Figure 4. This schematic shows how to use the LM386 as a medium wave regenerative receiver
• Figure 5. The LM386 can be used to create a shortwave regenerative receiver
• Figure 6. Create LM386 shortwave regenerative receivers using high gain and RF envelope detector modes
