Create LM386 shortwave regenerative receivers using high gain and RF envelope detector modes
| Authors | Martyn Mckinney |
| Main Document | Article «Create radio receiver circuits with the LM386 audio amplifier» |
| Description | Figure 6 |
| File Format / Size | PDF / 67 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Create radio receiver circuits with the LM386 audio amplifier»
- Figure 1. This LM386 schematic is taken from a Texas Instruments datasheet
- Figure 2. The LM386 can be used as a tuned radio frequency receiver
- Figure 3. This voltage vs frequency graph is taken from a Texas Instruments datasheet
- Figure 4. This schematic shows how to use the LM386 as a medium wave regenerative receiver
- Figure 5. The LM386 can be used to create a shortwave regenerative receiver

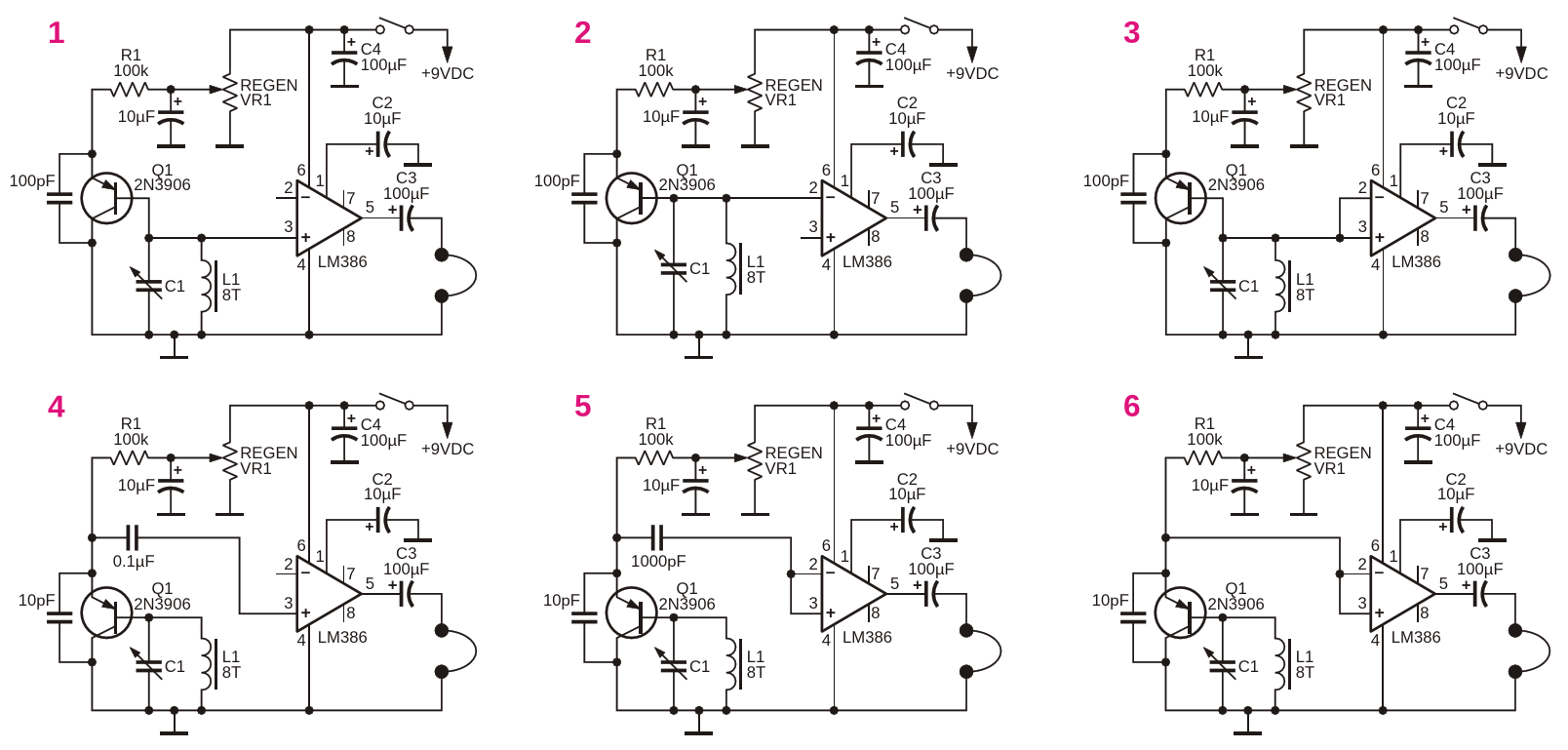

- Figure 6. Create LM386 shortwave regenerative receivers using high gain and RF envelope detector modes
