A precision resistive divider brings the power-supply voltage within this ADC's input range but introduces measurement errors
| Authors | Björn Starmark, Orville Buenaventura, Sören Käck |
| Main Document | Article «Rearranged reference helps ADC measure its own supply voltage» |
| Description | Figure 1 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Rearranged reference helps ADC measure its own supply voltage»

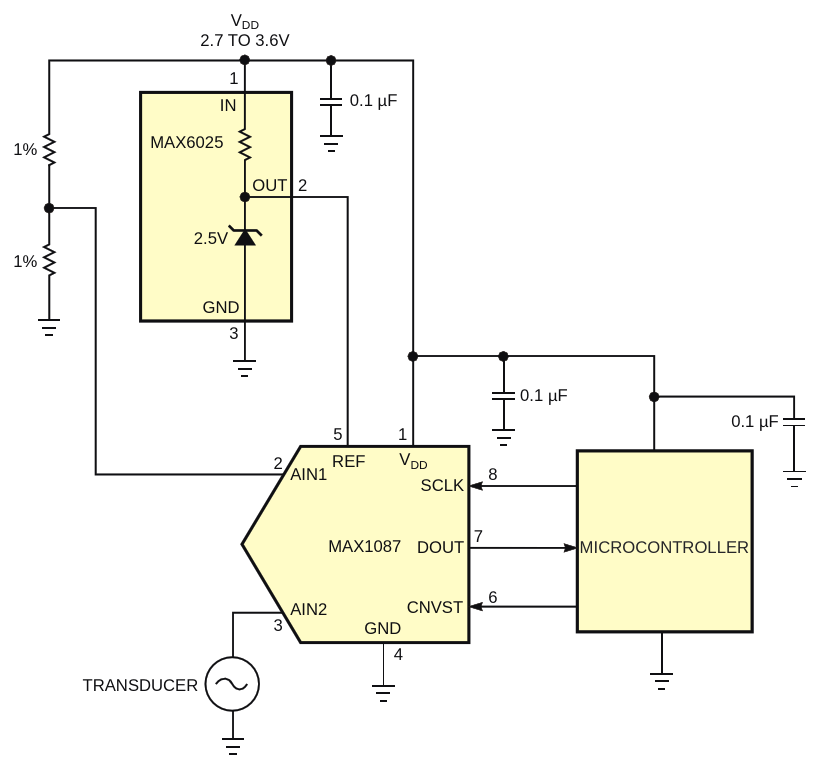

- Figure 1. A precision resistive divider brings the power-supply voltage within this ADC's input range but introduces measurement errors
- Figure 2. To eliminate the resistive divider, you connect the ADC's reference voltage to its power supply and measure the precision voltage reference's output
