This simple circuit linearizes a thermistor's response and produces an output period that's proportional to temperature

Authors	S. Kaliyugavaradan
Main Document	Article «Temperature-to-period circuit provides linearization of thermistor response»
Description	Figure 1
File Format / Size	PDF / 66 Kb
Document Language	English

Other Materials from the Main Document

Article «Temperature-to-period circuit provides linearization of thermistor response»

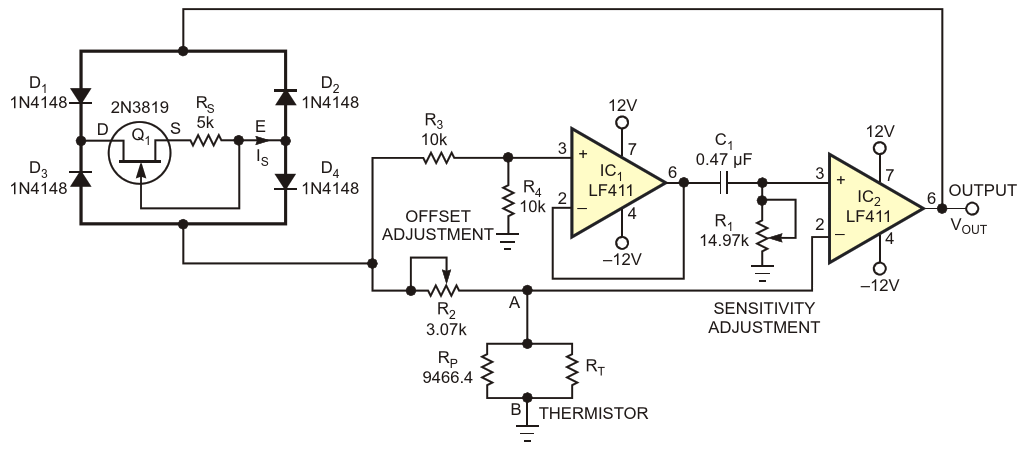

Figure 1. This simple circuit linearizes a thermistor's response and produces an output period that's proportional to temperature
Figure 2. Waveforms show input to comparator IC₂ (lower trace) and its output (upper trace). In the lower trace, IR₂ represents the voltage across R₂
