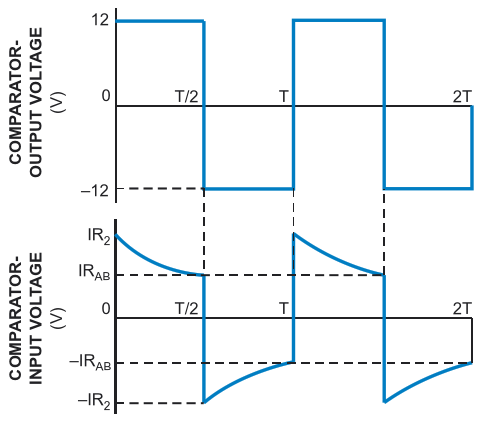

Waveforms show input to comparator IC2 (lower trace) and its output (upper trace). In the lower trace, IR2 represents the voltage across R2
| Authors | S. Kaliyugavaradan |
| Main Document | Article «Temperature-to-period circuit provides linearization of thermistor response» |
| Description | Figure 2 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Temperature-to-period circuit provides linearization of thermistor response»
- Figure 1. This simple circuit linearizes a thermistor's response and produces an output period that's proportional to temperature
- Figure 2. Waveforms show input to comparator IC2 (lower trace) and its output (upper trace). In the lower trace, IR2 represents the voltage across R2
