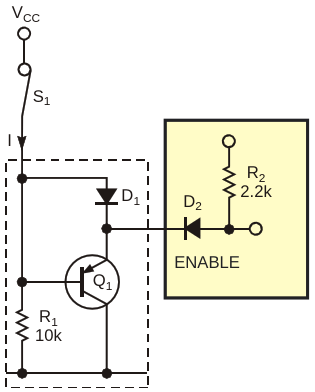

An active pulldown circuit substitutes a saturated transistor for a power-consuming pulldown resistor
| Authors | Jean-Bernard Guiot |
| Main Document | Article «Active pullup/pulldown network saves watts» |
| Description | Figure 2 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
