Triacs independently control two loads based on signals from a pair of wall switches
| Authors | Tom Hornak |
| Main Document | Article «Short DC Power-Line Pulses Afford Remote Control» |
| Description | Figure 3 |
| File Format / Size | PDF / 21 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Short DC Power-Line Pulses Afford Remote Control»
- Figure 1. This circuit creates dc pulses for use with control circuitry located at the load
- Figure 2. This control circuit uses dc pulses from the circuit in Figure 1 to drive triacs in the circuit in Figure 3

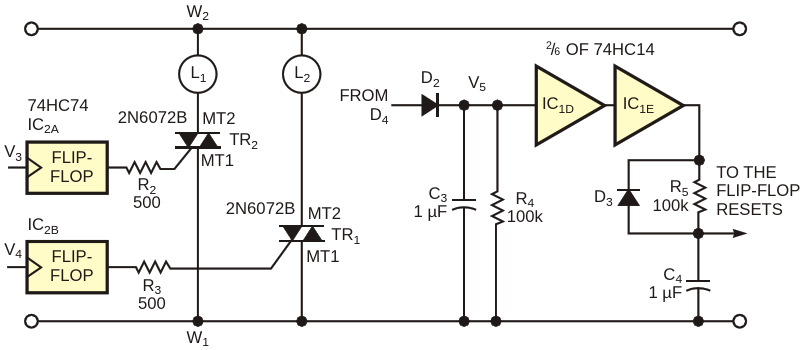

- Figure 3. Triacs independently control two loads based on signals from a pair of wall switches
