Cancel PWM DAC ripple with analog subtraction
| Authors | Stephen Woodward |
| Main Document | Article «Cancel PWM DAC ripple and power supply noise» |
| Description | Figure 1 |
| File Format / Size | PDF / 26 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Cancel PWM DAC ripple and power supply noise»

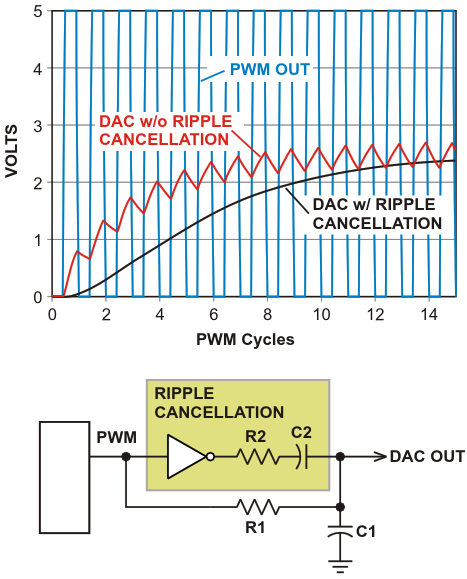

- Figure 1. Cancel PWM DAC ripple with analog subtraction

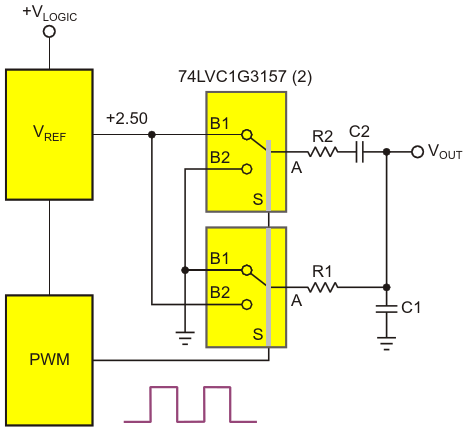

- Figure 2. Cancel PWM DAC ripple with analog subtraction
- Figure 3. PWM logic signal used for Ripple Cancellation, thus saving a switch
- Figure 4. Q2 pulse area servoed to voltage reference
- Figure 5. LT431 as precision comparator/difference amplifier with built-in VREF (from TL431 datasheet)
