PWM logic signal used for Ripple Cancellation, thus saving a switch
| Authors | Stephen Woodward |
| Main Document | Article «Cancel PWM DAC ripple and power supply noise» |
| Description | Figure 3 |
| File Format / Size | PDF / 9 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Cancel PWM DAC ripple and power supply noise»
- Figure 1. Cancel PWM DAC ripple with analog subtraction
- Figure 2. Cancel PWM DAC ripple with analog subtraction

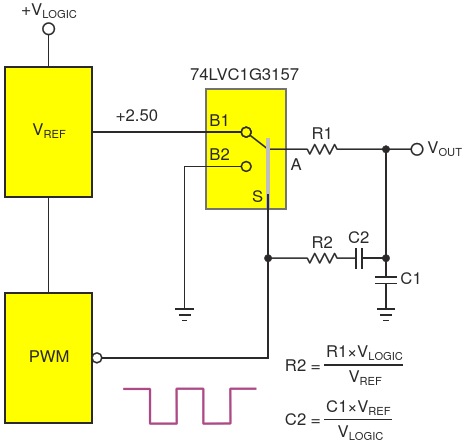

- Figure 3. PWM logic signal used for Ripple Cancellation, thus saving a switch
