The 300 volt, 4 second, Shannon decoder DAC
| Authors | Stephen Woodward |
| Main Document | Article «300 volt, 4 second, self-calibrating Shannon decoder DAC» |
| Description | Figure 1 |
| File Format / Size | PDF / 19 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «300 volt, 4 second, self-calibrating Shannon decoder DAC»

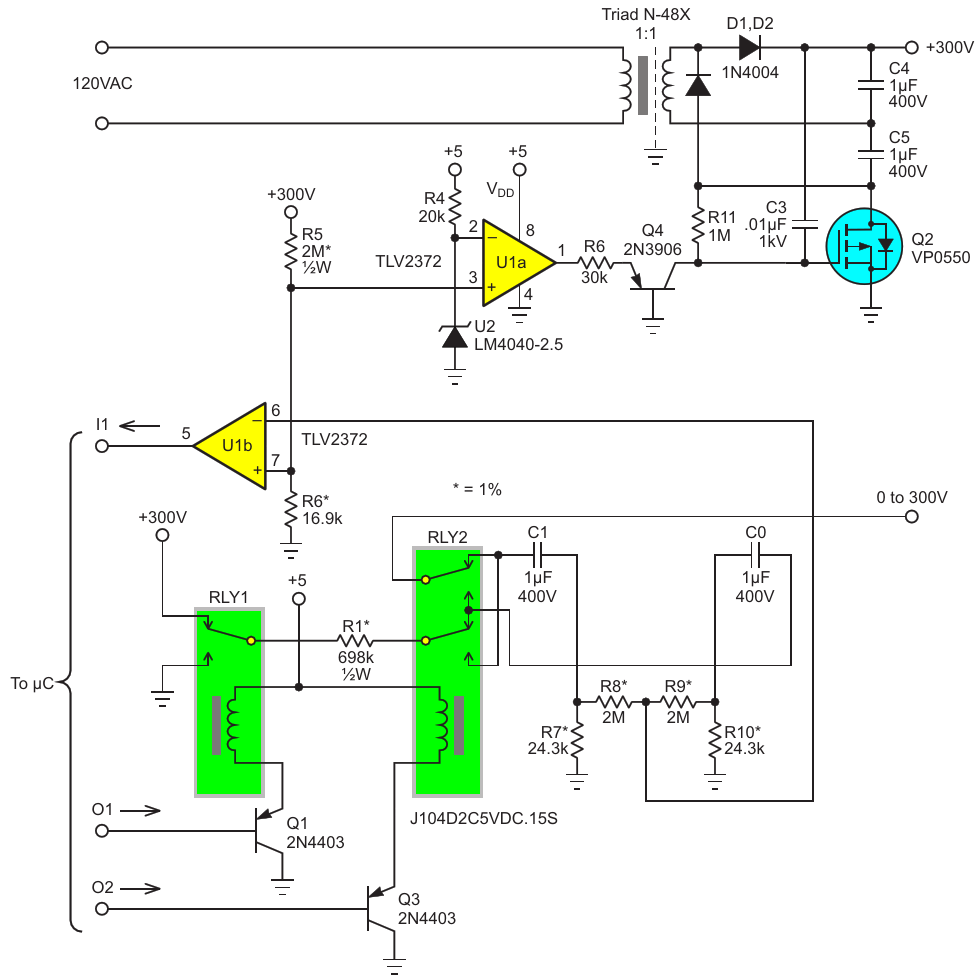

- Figure 1. The 300 volt, 4 second, Shannon decoder DAC
- Figure 2. Conversion and sample-and-hold operating sequence
- Figure 3. The effect of a 10% T = RC error producing a ~2% = 5 LSB conversion error
- Figure 4. Tx autocalibration sequence to compensate for large tolerances found with inexpensive capacitors
