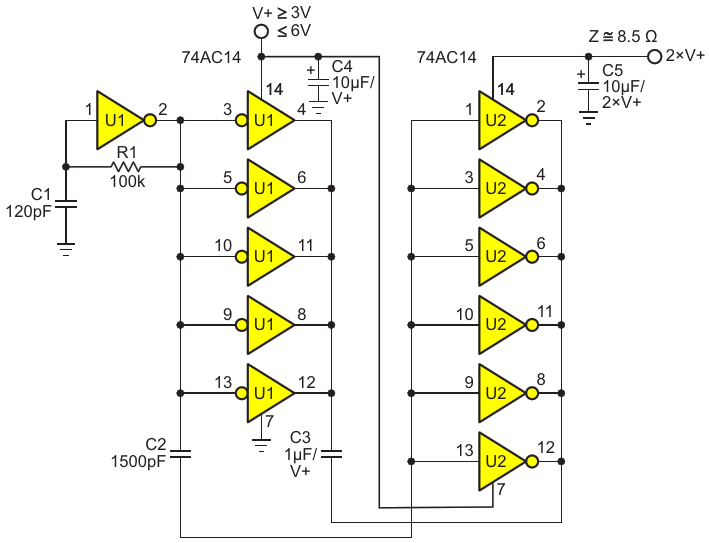

Complete voltage doubler: 100 kHz pump clock set by R1C1, Schmidt trigger, driver (U1), and commutator (U2)
| Authors | Stephen Woodward |
| Main Document | Article «Efficient voltage doubler is made from generic CMOS inverters» |
| Description | Figure 3 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Efficient voltage doubler is made from generic CMOS inverters»
- Figure 1. Simplified schema of typical basic CMOS gate I/O circuitry showing clamping diodes and complementary FET switch pair
- Figure 2. Simplified voltage doubler, showing driver device (U1), commutation device (U2), and coupling (CC), pump (CP), and filter (CF) capacitors
- Figure 3. Complete voltage doubler: 100 kHz pump clock set by R1C1, Schmidt trigger, driver (U1), and commutator (U2)
- Figure 4. Adding four inexpensive parts suffices to triple the supply voltage
