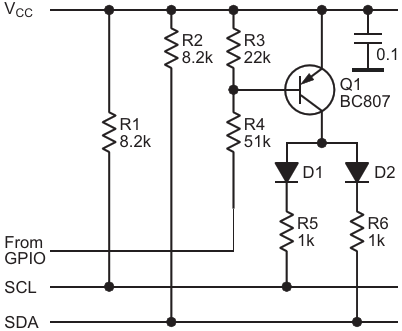

The adaptable pullup where a closed transistor connects additional resistors R5 and R6 in parallel to the main pullup resistors R1 and R2
| Authors | Peter Demchenko |
| Main Document | Article «Adaptable pullup» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Adaptable pullup»
- Figure 1. The adaptable pullup where a closed transistor connects additional resistors R5 and R6 in parallel to the main pullup resistors R1 and R2
- Figure 2. Alternative adaptable pullup solution that uses an analog switch to disconnect the "fast" part of the bus
