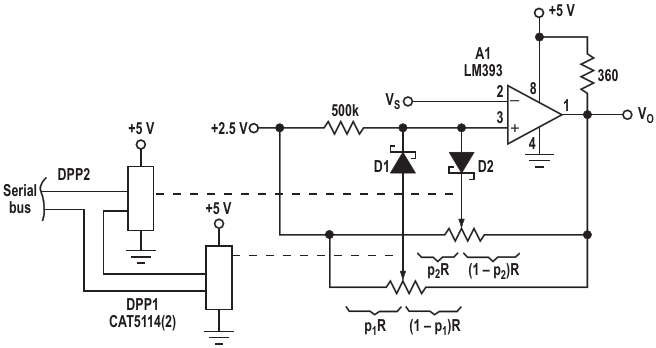

Adding steering diodes D1 and D2, plus another potentiometer, allows independent programming of the upper and lower hysteresis limits
| Authors | Chuck Wojslaw |
| Main Document | Article «Programmable Schmitt triggers are digitally controlled» |
| Description | Figure 3 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Programmable Schmitt triggers are digitally controlled»
- Figure 1. A digitally programmable potentiometer enables adjustment to this Schmitt trigger's upper and lower hysteresis limits, although the limits aren't independently programmable
- Figure 2. The transfer characteristic of the Figure 1 circuit illustrates the hysteresis curve, and the lower and upper limits
- Figure 3. Adding steering diodes D1 and D2, plus another potentiometer, allows independent programming of the upper and lower hysteresis limits
