This switched-capacitor inverter derives -10 V from 5 V
| Authors | Ken Yang |
| Main Document | Article «Simple circuit converts 5V to -10 V» |
| Description | Figure 1 |
| Pages / Page | 2 / 1 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Simple circuit converts 5V to -10 V»

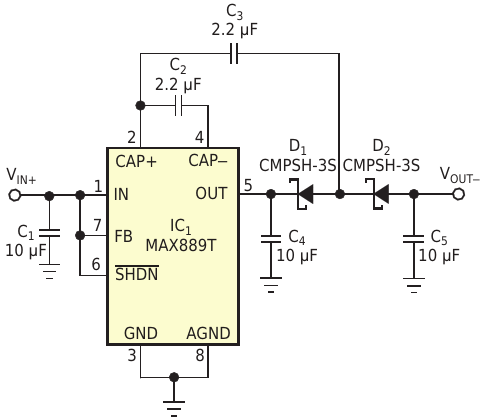

- Figure 1. This switched-capacitor inverter derives -10 V from 5 V
- Figure 2. At light loads, the circuit in Figure 1 delivers more than -10 V; at higher currents, the magnitude of the negative output voltage exceeds its positive input voltage of 5 V
