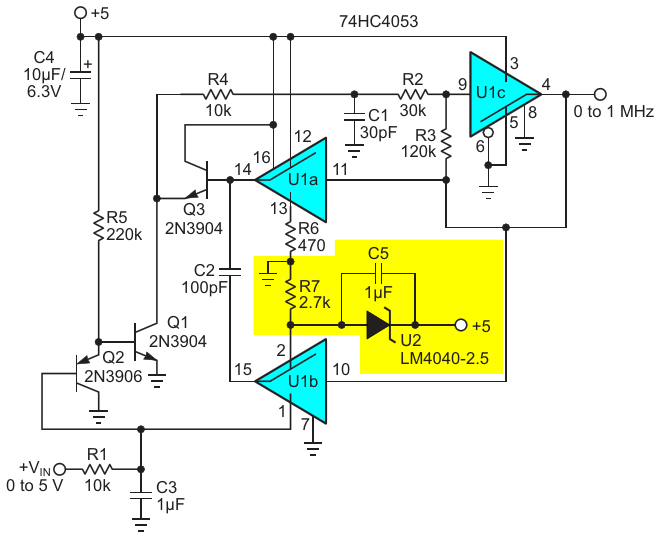

U2 shunt reference stabilizes C2 charge to a +5 independent precision 2.50 V
| Authors | Stephen Woodward |
| Main Document | Article «Voltage inverter design idea transmogrifies into a 1MHz VFC» |
| Description | Figure 3 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Voltage inverter design idea transmogrifies into a 1MHz VFC»
- Figure 1. Basic voltage inverter circuit scaled for efficiency at 100 kHz and several milliamps of current output
- Figure 2. Modified voltage inverter becomes power thrifty 1 MHz VFC
- Figure 3. U2 shunt reference stabilizes C2 charge to a +5 independent precision 2.50 V
