Circuits
A Ramp-Comparator style 200 …
A Ramp-Comparator style 200 kHz VFC that operates from a single supply rail, with differential bipolar inputs, and an acceptable linearity
Authors
Stephen Woodward
Main Document
Article «
Single supply 200kHz VFC with bipolar differential inputs
»
Description
Figure 1
File Format / Size
PDF
/
17 Kb
Document Language
English
Download PDF
Other Materials from the Main Document
Article «
Single supply 200kHz VFC with bipolar differential inputs
»

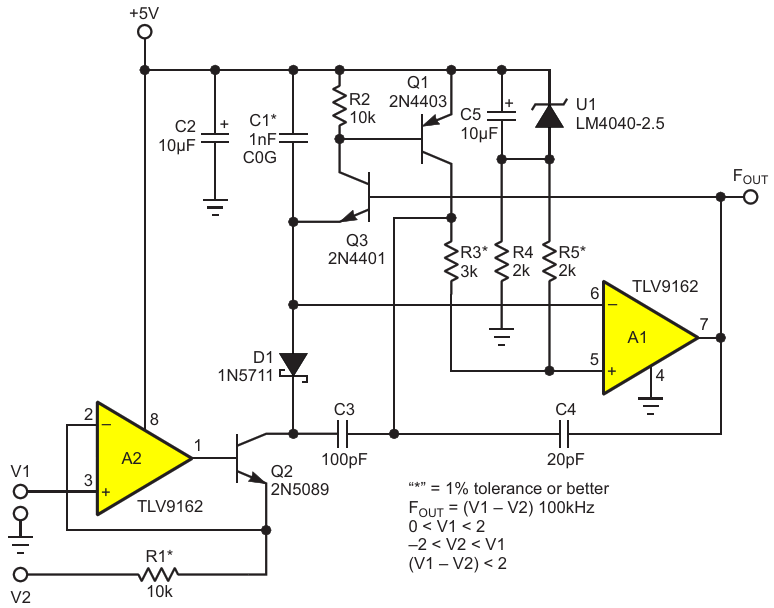

Figure 1. A Ramp-Comparator style 200 kHz VFC that operates from a single supply rail, with differential bipolar inputs, and an acceptable linearity
Figure 2. VFC oscillation waveshapes where: VC1 is the VFC timing ramp, F
OUT
is the output to counter, and A1p5 is the comparator's non- inverting input
