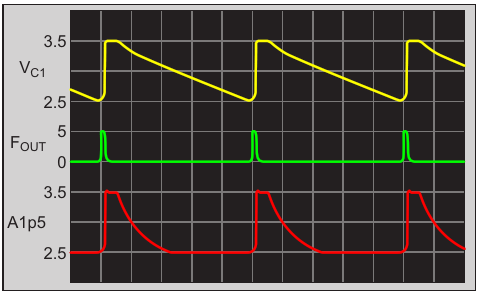

VFC oscillation waveshapes where: VC1 is the VFC timing ramp, FOUT is the output to counter, and A1p5 is the comparator's non- inverting input
| Authors | Stephen Woodward |
| Main Document | Article «Single supply 200kHz VFC with bipolar differential inputs» |
| Description | Figure 2 |
| File Format / Size | PDF / 10 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Single supply 200kHz VFC with bipolar differential inputs»
- Figure 1. A Ramp-Comparator style 200 kHz VFC that operates from a single supply rail, with differential bipolar inputs, and an acceptable linearity
- Figure 2. VFC oscillation waveshapes where: VC1 is the VFC timing ramp, FOUT is the output to counter, and A1p5 is the comparator's non- inverting input
