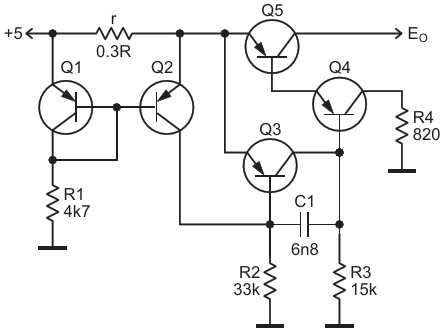

The Q1, Q2 transistor pair provide thermal compensated monitoring of the voltage drop on resistor r; when this drop rises to ~20 mV, the fuse goes "on", limiting output current to ~150 mA
| Authors | Peter Demchenko |
| Main Document | Article «An accurate resettable fuse» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
