Adding an oscillator/counter can turn the circuit off automatically after a suitable delay
| Authors | Nick Cornford |
| Main Document | Article «To press on or hold off? This does both» |
| Description | Figure 2 |
| File Format / Size | PDF / 19 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «To press on or hold off? This does both»
- Figure 1. Two transistors form a power-switching latch, which can be set (power on) by a short button-press and then reset (power off) by a longer one

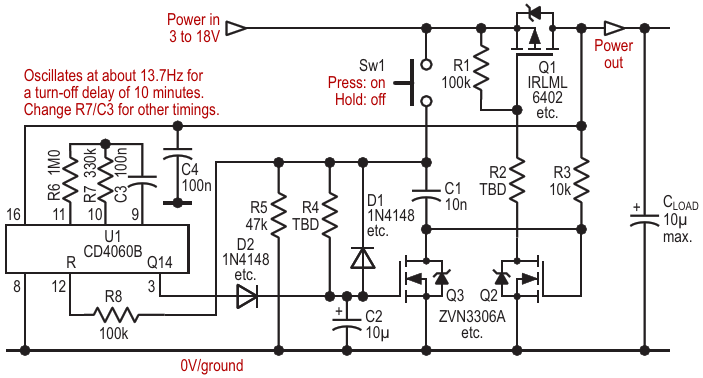

- Figure 2. Adding an oscillator/counter can turn the circuit off automatically after a suitable delay
