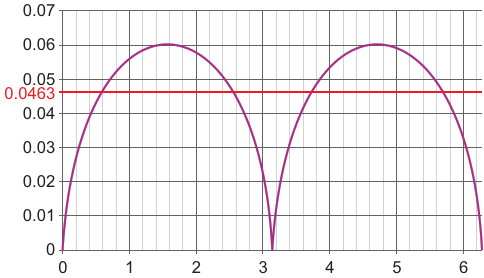

Q1's ∆VBE PTAT log(|sin(r)|) °K/5050 waveform. (Yaxis = volts, Xaxis = radians Red = average value = AC baseline)
| Authors | Stephen Woodward |
| Main Document | Article «∆VBE bread dough incubator» |
| Description | Figure 2 |
| File Format / Size | PDF / 6 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «∆VBE bread dough incubator»
- Figure 1. ∆VBE sensor Q1 is programmed via R1 for desired setpoint temperature in Kelvin = R1/100 = 312 °K = 39 °C for R1 = 31.2k. Asterisked Rs should be precision types (1% or better)
- Figure 2. Q1's ∆VBE PTAT log(|sin(r)|) °K/5050 waveform. (Yaxis = volts, Xaxis = radians Red = average value = AC baseline)
