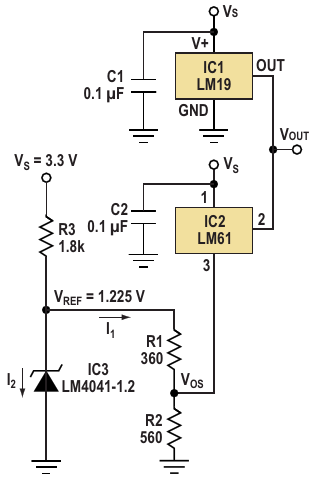

This dual-slope temperature sensor circuit can help compensate for the frequency drift of XT-cut crystals
| Authors | Daniel Burton |
| Main Document | Article «Temperature-sensor circuit provides dual-slope output» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Temperature-sensor circuit provides dual-slope output»
- Figure 1. This dual-slope temperature sensor circuit can help compensate for the frequency drift of XT-cut crystals
- Figure 2. The outputs of two individual temperature sensors are superimposed to create an overall response that allows compensation for both negative and positive temperature coefficients
- Figure 3. The measured VOUT demonstrates the V-shaped curve used to approximate the actual parabolic curve of XT crystals
