LM317 regulator melds with HC4053 CMOS switch to make a 16-W PWM power DAC
| Authors | Stephen Woodward |
| Main Document | Article «PWM power DAC incorporates an LM317» |
| Description | Figure 1 |
| File Format / Size | PDF / 20 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «PWM power DAC incorporates an LM317»

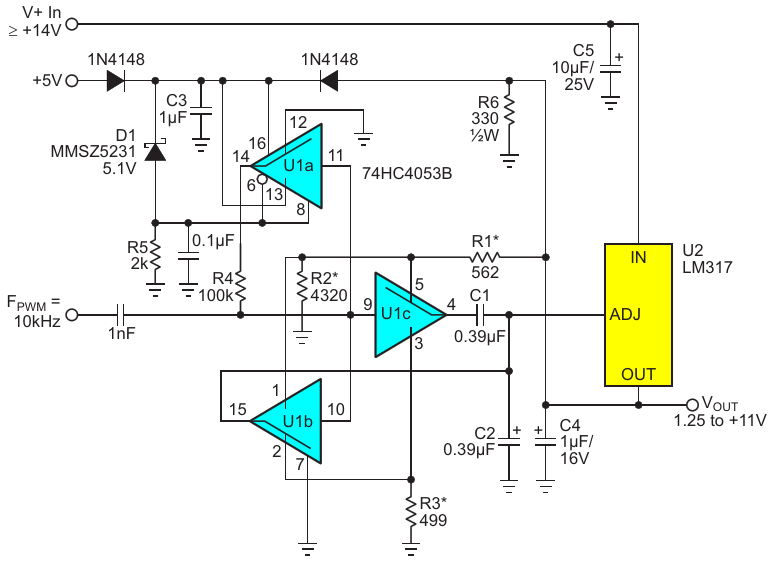

- Figure 1. LM317 regulator melds with HC4053 CMOS switch to make a 16-W PWM power DAC
- Figure 2. The VOUT (1.25 V to 11 V) versus PWM D (0 to 1) where VOUT = 1.25 / (1 - 0.885×D)
- Figure 3. The inverse of Figure 2 where PWM D = (1 - 1.25/VOUT)/0.885
