The anti-logarithmic linearization of …
The anti-logarithmic linearization of Darlington airspeed sensor
Authors
Stephen Woodward
Main Document
Article «
Nonlinearities of Darlington airflow sensor and VFC compensate each other
»
Description
Figure 7
File Format / Size
PDF
/
10 Kb
Document Language
English
Download PDF
Other Materials from the Main Document
Article «
Nonlinearities of Darlington airflow sensor and VFC compensate each other
»
Figure 1. The TO-92 junction temperature delta versus air speed at 320 mW showing the nonlinear relationship between airflow and sensor temperature
Figure 2. The self-heated Darlington thermal airflow sensor
Figure 3. The nonlinear VFC is shown, with U1 configured in a 555 astable topology and a V
IN
resistor network, providing a solution for the previous nonlinearity

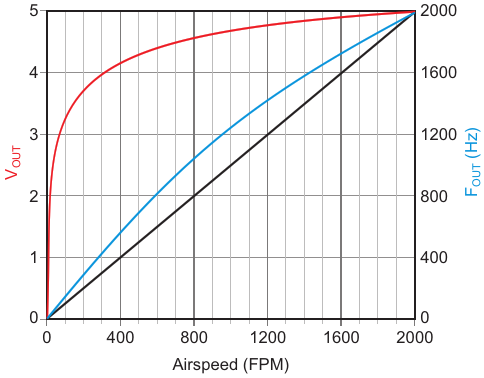

Figure 4. The linearized VFC airflow response (blue) where the increasing rate of Hz versus fpm cancels the nonlinear effects of King's Law to yield a 1 Hz = 1 fpm calibration
Figure 5. Konstantin Kim's Kurve
Figure 6. The anti-log nonlinear VFC
Figure 7. The anti-logarithmic linearization of Darlington airspeed sensor
