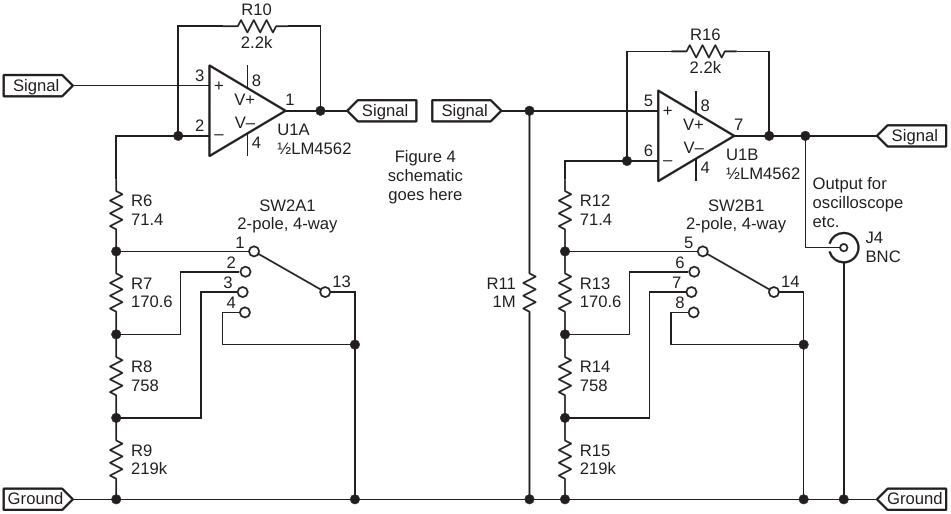

First and second amplifiers and range switch
| Authors | John Woodgate |
| Main Document | Article «Designing a wideband analog voltage and current meter. Part 2» |
| Description | Figure 3 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Designing a wideband analog voltage and current meter. Part 2»
- Figure 3. First and second amplifiers and range switch
