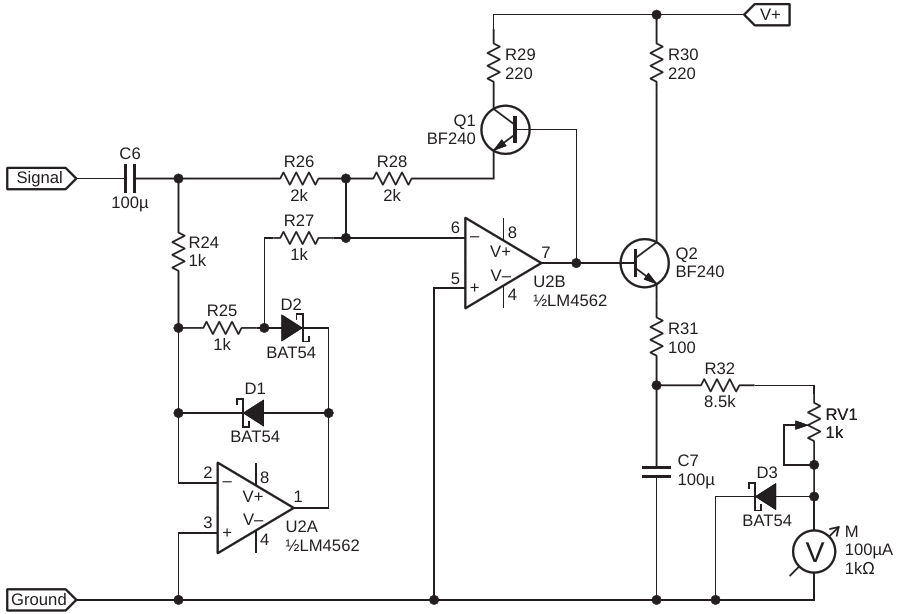

A diagram showing the peak detector

Authors	John Woodgate
Main Document	Article «Designing a wideband analog voltage and current meter. Part 2»
Description	Figure 5
File Format / Size	PDF / 18 Kb
Document Language	English

Other Materials from the Main Document

Article «Designing a wideband analog voltage and current meter. Part 2»

Figure 3. First and second amplifiers and range switch
Figure 4. Diagram of 3/10/13 dB attenuators and external filter connectors
Figure 5. A diagram showing the peak detector
