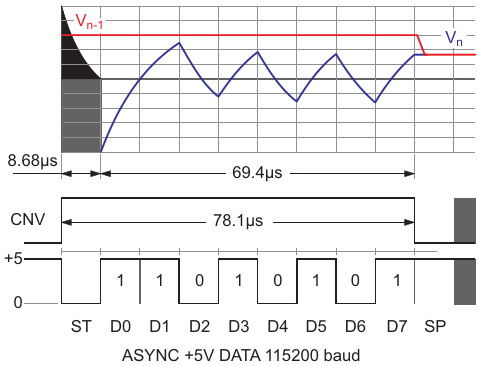

The SDD conversion cycle timing for 5 V logic levels
| Authors | Stephen Woodward |
| Main Document | Article «Shannon decoder DAC meets UART» |
| Description | Figure 3 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
