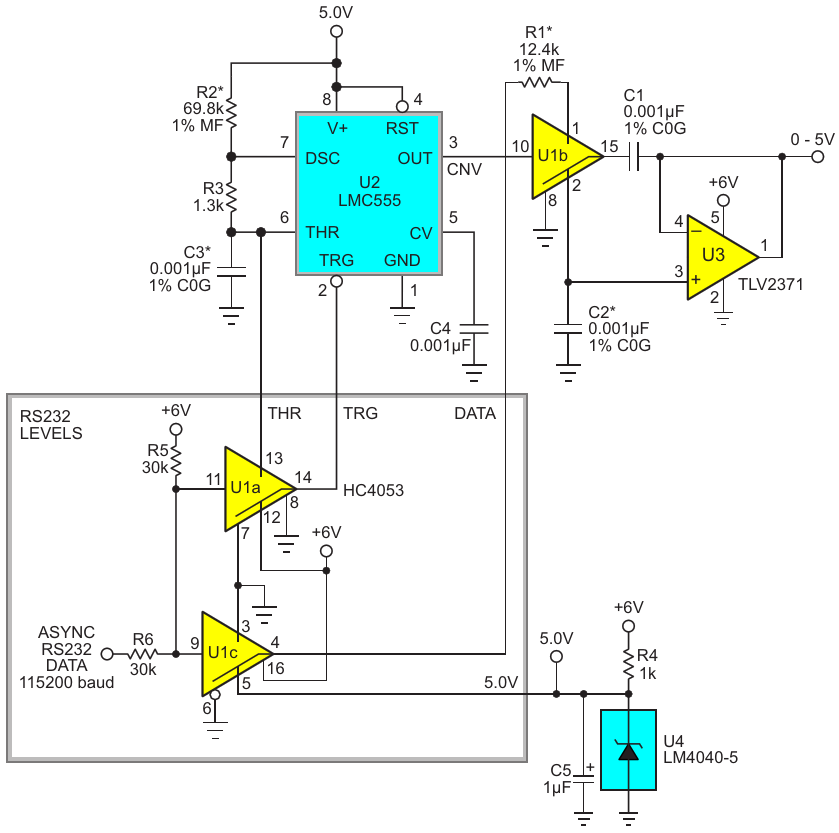

The SDD input modified for RS232 signal levels and polarity
| Authors | Stephen Woodward |
| Main Document | Article «Shannon decoder DAC meets UART» |
| Description | Figure 4 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
