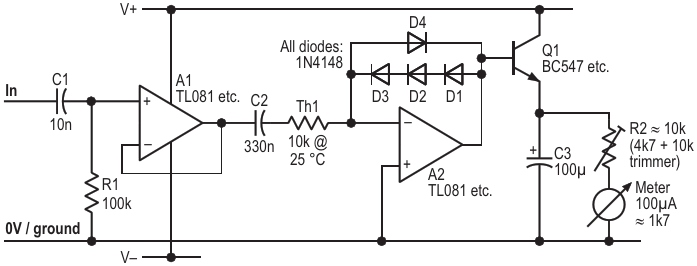

This upgraded circuit has a faster response and much better temperature stability
| Authors | Nick Cornford |
| Main Document | Article «Simple log-scale audio meter» |
| Description | Figure 2 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Simple log-scale audio meter»
- Figure 1. This basic peak log detector shows the principals involved and helps to highlight the problems. (Assume split, non-critical supply rails.)
- Figure 2. This upgraded circuit has a faster response and much better temperature stability
- Figure 4. The simulated and actual response curves are combined here, showing good conformance to a log law with adequate temperature stability
