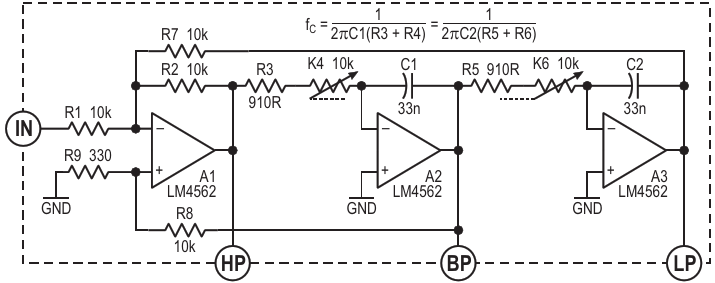

A classic bi-quad or two-integrator-loop filter, with its high-pass, bandpass, and low-pass outputs
| Authors | Nick Cornford |
| Main Document | Article «Ultra-low distortion oscillator. Part 1 - How not to do it» |
| Description | Figure 4 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
