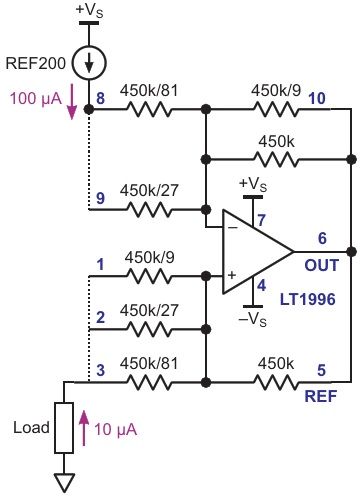

LT1996 used as a pin-strap-programmable current sink/ source, in this case, dividing the reference current by 10
| Authors | Stefano Salvatori, Pietro Oliva |
| Main Document | Article «Precision programmable current source uses two ICs» |
| Description | Figure 2 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Precision programmable current source uses two ICs»
- Figure 1. IREF can be increased or decreased to the load depending on N
- Figure 2. LT1996 used as a pin-strap-programmable current sink/ source, in this case, dividing the reference current by 10
- Figure 3. LT1995 sinking five times the reference current
- Figure 4. An LT1991 is used to source/sink from 10-90 µA in 10 µA steps
