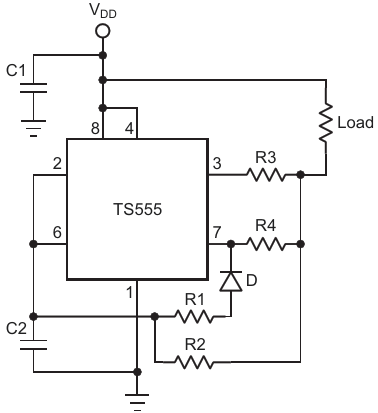

Circuit that combines the sink currents of the Output and Discharge pin of the, doubling the output current
| Authors | Peter Demchenko |
| Main Document | Article «Mighty 555 and ESR-meter» |
| Description | Figure 2 |
| File Format / Size | PDF / 9 Kb |
| Document Language | English |
