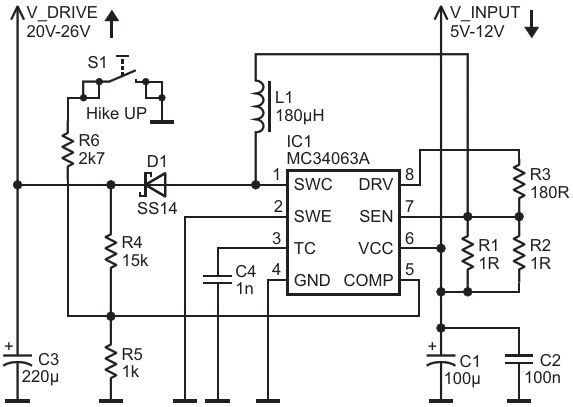

The power supply circuit

Authors	T.K. Hareendran
Main Document	Article «Ultrasonic mist maker (DIY)»
Description	Figure 4
File Format / Size	PDF / 14 Kb
Document Language	English

Other Materials from the Main Document

Article «Ultrasonic mist maker (DIY)»

Figure 2. The circuit diagram of the final part of the project - the transducer driver
Figure 4. The power supply circuit
