Programmable Dimming LED Driver from Diodes Incorporated with Integrated 30V MOSFET and Schottky

Diodes » AL3050

Diodes Incorporated introduced the AL3050. This current-mode boost-type LED driver provides programmable brightness for LED backlighting of portable devices. Its advanced dimming features, small solution size, low BOM-cost and high efficiency make it well-suited for use in single-cell Li-ion based equipment with smaller LCD panels, such as feature/smart phones, portable media players, GPS receivers and other ultra-mobile devices.

Diodes - AL3050

With an integrated 30 V 0.6 Ω MOSFET and power Schottky diode, the AL3050 can drive up to eight LEDs in series with the capability to connect multiple LED strings in parallel. It offers modes for regular PWM dimming with a 100:1 deep dimming ratio and a single-wire digital-dimming mode that provides a 32-step programmable brightness capability. The boost converter operates at a fixed 750 kHz switching frequency to reduce output ripple, improve conversion efficiency and allow for the use of small external components.

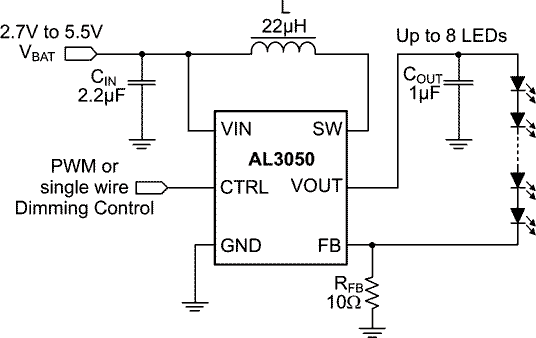

The AL3050Typical Application Circuit
The AL3050Typical Application Circuit.

The AL3050 ensures reliable system performance with robust LED-short and LED-open protection and system-start current limits, as well as providing standard over-current, over-voltage and over-temperature functionality. The AL3050 is available in a compact 2 mm × 2 mm U-DFN2020 package.
