Intersil Fills Out 12V Synchronous Buck Regulator Portfolio

Intersil » ISL85014, ISL85012, ISL85009, ISL85005A, ISL85005

Highly integrated ISL850xx support auxiliary rails for industrial and infrastructure point-of-load applications up to 14 A

Intersil, a subsidiary of Renesas Electronics Corporation introduced five synchronous buck regulators that step-down 12 V rails to point-of load inputs as low as 0.6 V for MCUs, FPGAs, memory and peripheral I/Os. The newest members of the ISL850xx family consist of the ISL85014, ISL85012, ISL85009, ISL85005A and ISL85005 buck regulators. They deliver 14 A, 12 A, 9 A and 5 A of continuous output current, respectively, to industrial computers and programmable logic controllers as well as telecom, test and measurement, server and storage networking equipment.

Intersil - ISL85014, ISL85012, ISL85009, ISL85005A, ISL85005

The ISL850xx sync buck regulators support input voltage of 3.8 V to 18 V and wide output current range, offering designers a complete portfolio of devices with high efficiency and reliable performance. The pin compatible regulators integrate very low RDSon high side and low side MOSFETs that reduce external component count and power loss to extend product life. Both FETs also provide current limit and reverse current limit to boost reliability and protect the system during an overcurrent event. The high efficiency ISL850xx devices enable lower die temperatures, allowing systems to operate without cooling fans or heatsinks. Their internal compensation eliminates additional external components, which reduce design complexity and bill of materials (BOM) cost.

The ISL85014 is offered in one of the industry's smallest 14 A packages at 3.5 mm × 3.5 mm, offering a compact footprint to free up valuable board space. The ISL85009 is one of the industry's most power efficient 9 A sync buck regulators, offering high side FET RDSon at 17 mΩ and low side FET RDSon of 8.5 mΩ to dramatically reduce die temperatures for applications without cooling systems. The pin-compatible ISL85014, ISL85012 and ISL85009 address high load current applications, while the 5 A ISL85005A and ISL85005 buck switching regulators are pin-compatible with the previously released 3 A ISL85003A and ISL85003 devices.

Key Features and Specifications of ISL85014, ISL85012 and ISL85009

  • 3.8 V to 18 V input voltage range, and up to 9 A, 12 A and 14 A output loads
  • Output voltage is adjustable to as low as 0.6 V
  • Pre-bias start-up with internal 3 ms soft-start
  • Selectable switching frequency of 300 kHz or 600 kHz, and external sync up to 1 MHz
  • Peak current mode control with thermally compensated current limit and internal or external compensation options
  • Full protection includes input/output overvoltage, integrated bootstrap diode with undervoltage detection, and selectable overcurrent protection (OCP) schemes including hiccup and latch-off

Key Features and Specifications of ISL85005A and ISL85005

  • 4.5 V to 18 V input voltage range, and up to 5 A output load
  • Output voltage is adjustable to as low as 0.8 V
  • Integrated bootstrap diode with undervoltage detection
  • Current mode control with internal or external compensation options
  • Default switching frequency internally set 500 kHz
  • ISL85005 has internal 2.3 ms soft-start; ISL85005A has programmable soft-start to limit inrush current during startup
  • Full protection includes output Power-Good (PG) indicator, HS cycle-by-cycle current limit, LS forward and reverse OCP, thermal shutdown, input undervoltage lockout (UVLO), and input and output overvoltage protection

The ISL850xx family of buck regulators can work alongside the ISL68127 and ISL69124 digital multiphase controllers and ISL99227 smart power stages to support networking auxiliary output rails with high efficiency and compact size. They are also well suited for two stage 12 V to 5 V/3.3 V rails working with Intersil's 5 V sync buck regulators such as the 6 A ISL8026, dual 3 A ISL8033, and 3A ISL80030/31.

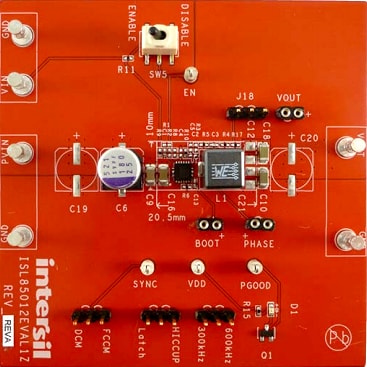

The ISL85012EVAL1Z board is used to evaluate the performance of the ISL85012
The ISL85012EVAL1Z board is used to evaluate the
performance of the ISL85012.

Pricing and Availability

The ISL850xx 12 V sync buck regulators are available now in 12-lead DFN and 15-lead TQFN packages with pricing from $0.75 USD to $2.35 in 1k quantities. For more information and to order evaluation boards, please visit: www.intersil.com/12v-buck-regulators.

Designers can use Intersil's PowerCompass™ tool to quickly identify the ISL850xx regulators and other parts that match their specific requirements, set up multiple rails that also support FPGAs or processors, perform high-level system analysis, and generate custom reference design files.

Device Output Current Input Supply Package Price $USD
(1k units)
ISL85014 14 A 3.8 V to 18V 3.5 mm × 3.5 mm, 15-L TQFN $2.35
ISL85012 12 A 3.8 V to 18 V 3.5 mm × 3.5 mm, 15-L TQFN $2.25
ISL85009 9 A 3.8 V to 18 V 3.5 mm × 3.5 mm, 15-L TQFN $1.50
ISL85005A 5 A 4.5 V to 18 V 3 mm × 4 mm, 12-pin DFN $0.77
ISL85005 5 A 4.5 V to 18 V 3 mm × 4 mm, 12-pin DFN $0.75
