National Semiconductor Introduces New Dual Mode Single Inductor Buck-Boost DC/DC Converter

National Semiconductor » LM3668

The LM3668 from National Semiconductor is a synchornous buck-boost DC-DC converter optimized for powering low voltage circuits from a Li-Ion battery and input voltage rails between 2.5 V and 5.5 V. It has the capability to support up to 1A output current over a output voltage range of 2.8 V / 3.3 V. The LM3668 regulates the output voltage over the complete input voltage range by automatically switching between buck or boost modes depending on the input voltage.

LM3668

The LM3668 has 2 N-channel MOSFETS and 2 P-channel MOSFETS arranged in a topology that provides continuous operation through the buck and boost operating modes. There is a MODE pin that allows the user to choose between an intelligent automatic PFM-PWM mode operation and forced PWM operation. During PWM mode, a fixed-frequency 2.2 MHz (typ.) is used. PWM mode drives load up to 1 A. Hysteretic PFM mode extends the battery life through reduction of the quiescent current to 45 µA (typ.) at light loads during system standby. Internal synchronous rectification provides high efficiency. In shutdown mode (Enable pin pulled low) the device turns off and reduces battery consumption to 0.01 µA (typ.).

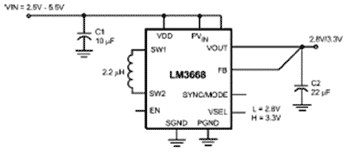

The LM3668 is available in a 12-pin LLP package. A high switching frequency of 2.2 MHz (typ.) allows the use of tiny surface-mount components including a 2.2  µH inductor, a 10 µF input capacitor, and a 22 µF output capacitor.
